TBK Mini
Site and github of the author of this keyboard.
Building and flashing
For keyboards based on rp2040 comands for buinding and flashing looks like this:
make bastardkb/tbkmini/v2/splinky_3:seoa
qmk flash -kb bastardkb/tbkmini/v2/splinky_3 -km seoa
You shold use it in the root of the vial directory.
After using qmk flash you shold simultaneously press two buttons on the micro or twise press the update button if it was installed on plate already. After that you need to mount the RPI-RP2(or like this) device to your system and the firmware will be installed on your keyboard.
Requirements
This firmware takes ~101.5 kb of disk space so you need to use some micro that haue enough space for it. All cotrollers based on rp2040 have at least 2 mb of the disk space so you can use any of it.
Description
The author of the original layout - Buliway
Custom phonetic layout with many keycodes with different functionality("smart" dot, caps on one word etc.) were implemented in this firmware. Some "features" were added from lang_shift repo.
By defaul it uses the caps lock key to change system language but you can change it like in your system in config.h.
I suggest you to have RGB lightning in your keyboard. So it shows you which layer is active now.

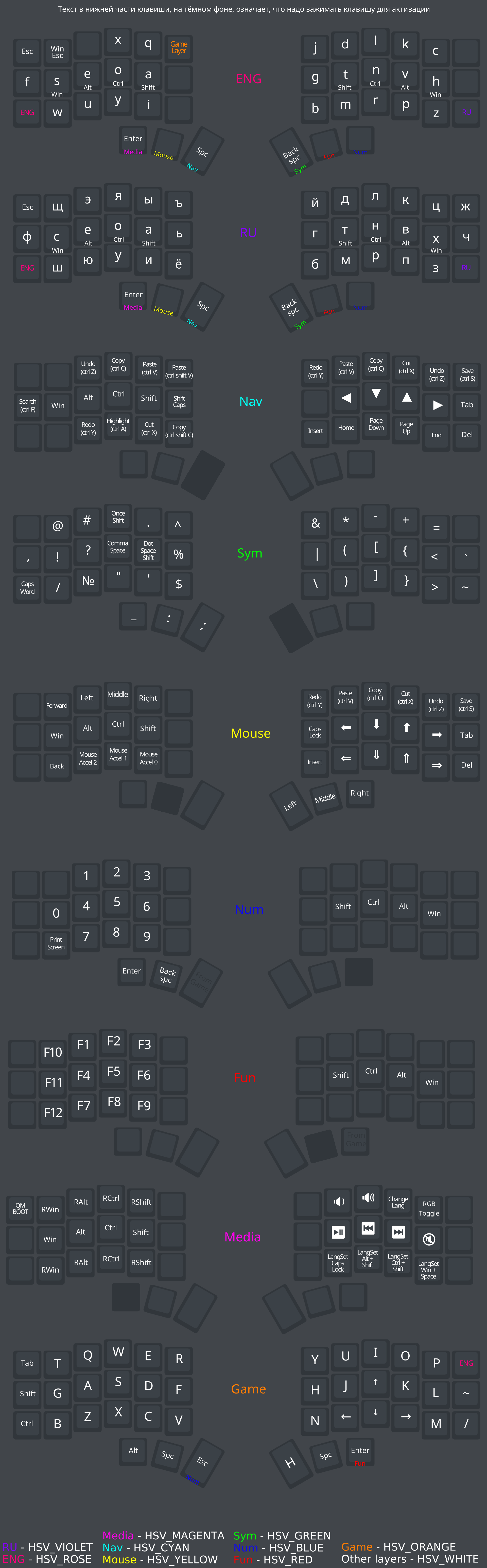

In ./keymaps/seoa/img/ you can see current layout scheme and file for krita so you can modify it
